Technology
A. The Production Process
The production process of the green fertilizer consists of the following steps
- Green Hydrogen (GH2) is Produced by Electrolysis of Water using the Renewable Energy from the CSTP Project; 2H2O → 2H2 + O2
- Nitrogen is produced by conventional air Separation Technology (PSA) from Air.
- Then Ammonia is Synthesized in a conventional Haber Bosch Process Unit that utilizes only Renewable Energy; thus the product is called ‘Green Ammonia’ N2 + 3H2 → 2NH3 [Green Ammonia]
- Green Ammonia(gas) so produced is then converted to Di-Ammonium Phosphate (DAP) in the Fertilizer Production Unit by reaction of Phosphoric Acid thus the ‘Green DAP’ is produced; NH3 + H3PO4 → (NH4)2HPO4 [Di-Ammonium Phosphate]
- Ammonia(gas) may directly be injected to soil as source of Nitrogen or the same may be converted to ammoniacl liquid fertilizer as liquer ammonia NH3 + H2O → (NH4)OH [Ammonia Liquer]
B. The Project Components

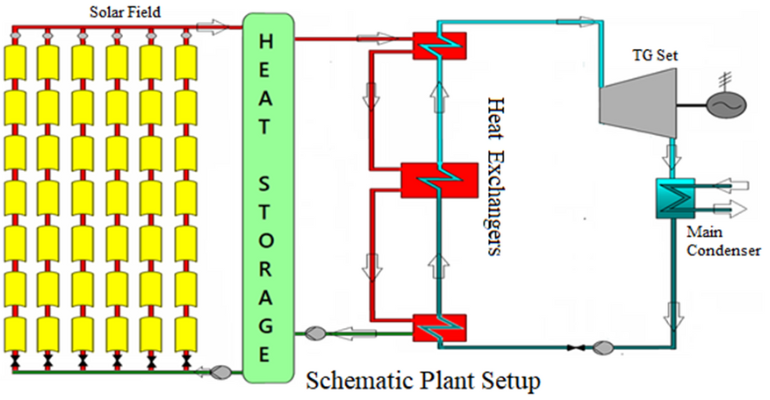

1. RE Plant Section
Round the clock power supply is ensured by CSP Plant with adequate energy storage system, consisting of following
- a. Solar Power Unit: - CSTP Technology 200 MW (20*10MW), Generation (4.8 MU/Day).
- b. Thermal Storage Unit: - Equivalent to (3.6 MU)

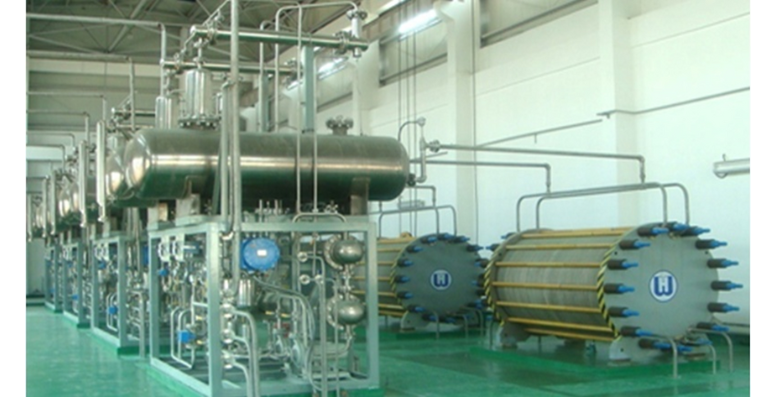

2. Green Hydrogen Section
- a. Green Hydrogen Unit: - Installed Capacity 67.2 (28*2.4) TPD
- b. Estimated Power Consumption: - (3.56 MU/Day).

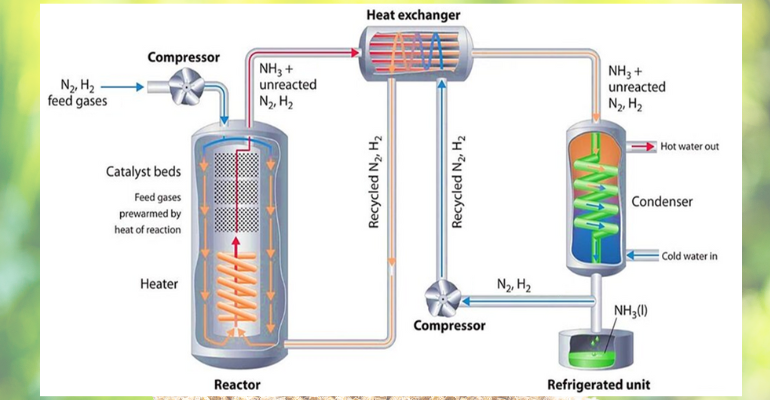

3. Green Ammonia Section
Conventional haber process is used for sysnthesis of Green Ammonia, consisting of following components
- a. Nitrogen Unit: - Conventional PSA Technology, Installed Capacity (320 TPD)
- b. Green Ammonia Unit: - Conventional Haber Unit, Installed Capacity (380 TPD)
- c. Estimated Power Consumption: - (1.01 MU/Day)

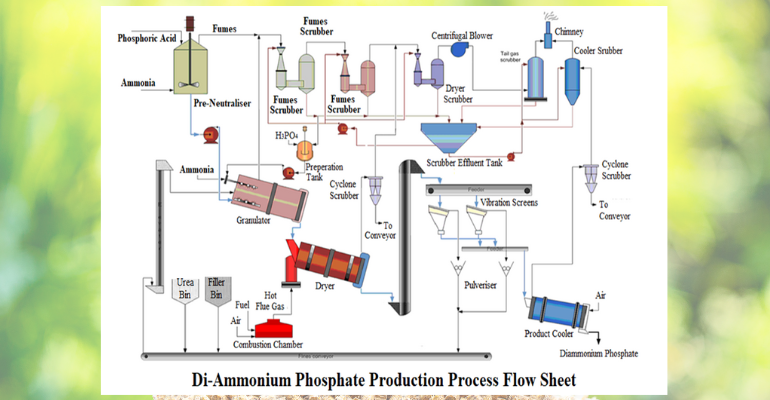

4. Green DAP Section
Conventional production process is used for production of Green DAP as under;
- a. Green Fertilizer Unit: - Conventional Technology, Installed Capacity (1,400 TPD)
- b. Estimated Power Consumption: - (0.18 MU/Day)
